2500 Series Mobile Workbench

Add To My Products Print Spec Contact Us
  • Share Page

Size Options

Please Note: Almost any workheight or size can be built.

Baked Enamel Colors:

  •  Gray
  •  Blue
  •  Beige
  •  Black
  •  Green
  •  Vivid Blue

Please Note: Custom colors can be spec'd for an added fee. Actual painted product color may differ slightly from that seen here.

Specifications

  • P7230-T-2500
  • 72" x 30"
  • 14 Gauge Legs, 16 Gauge Stringer
  • Full Arc Welded Legs, Bolted Formed Stringer
  • 1000.00 lbs.
  • 215.00 lbs.
  • Please Log In or Create Account for price

Description

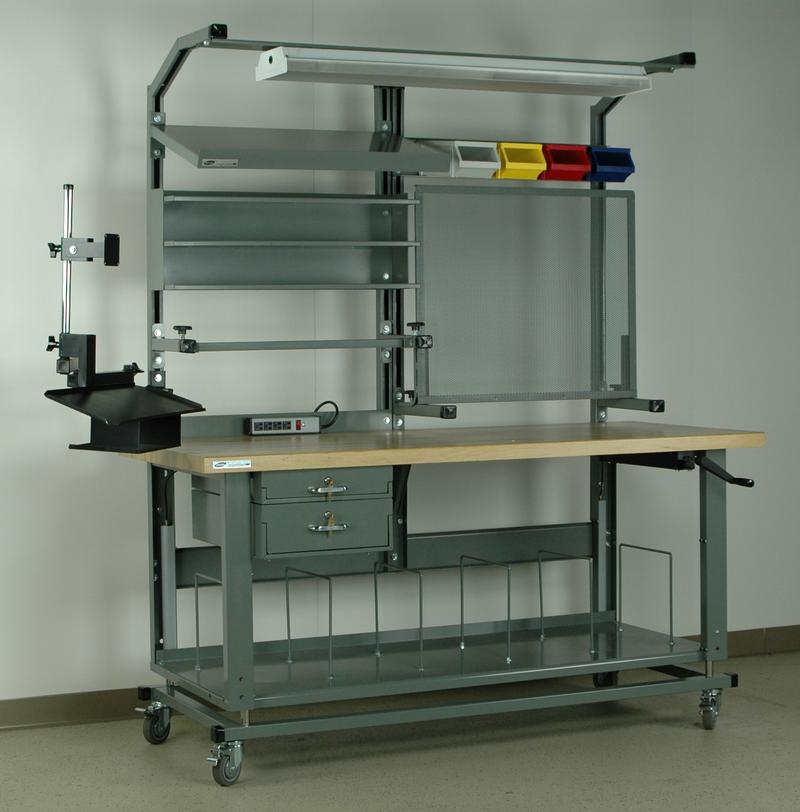

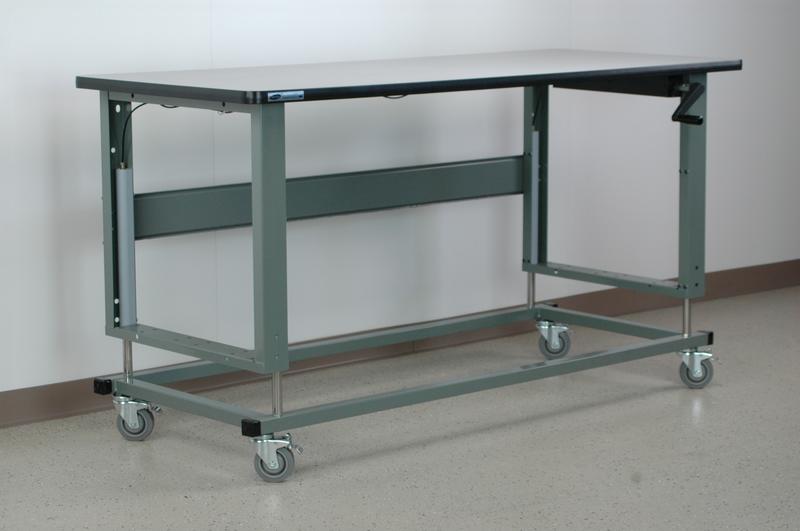

2500 Series Mobile Workbench

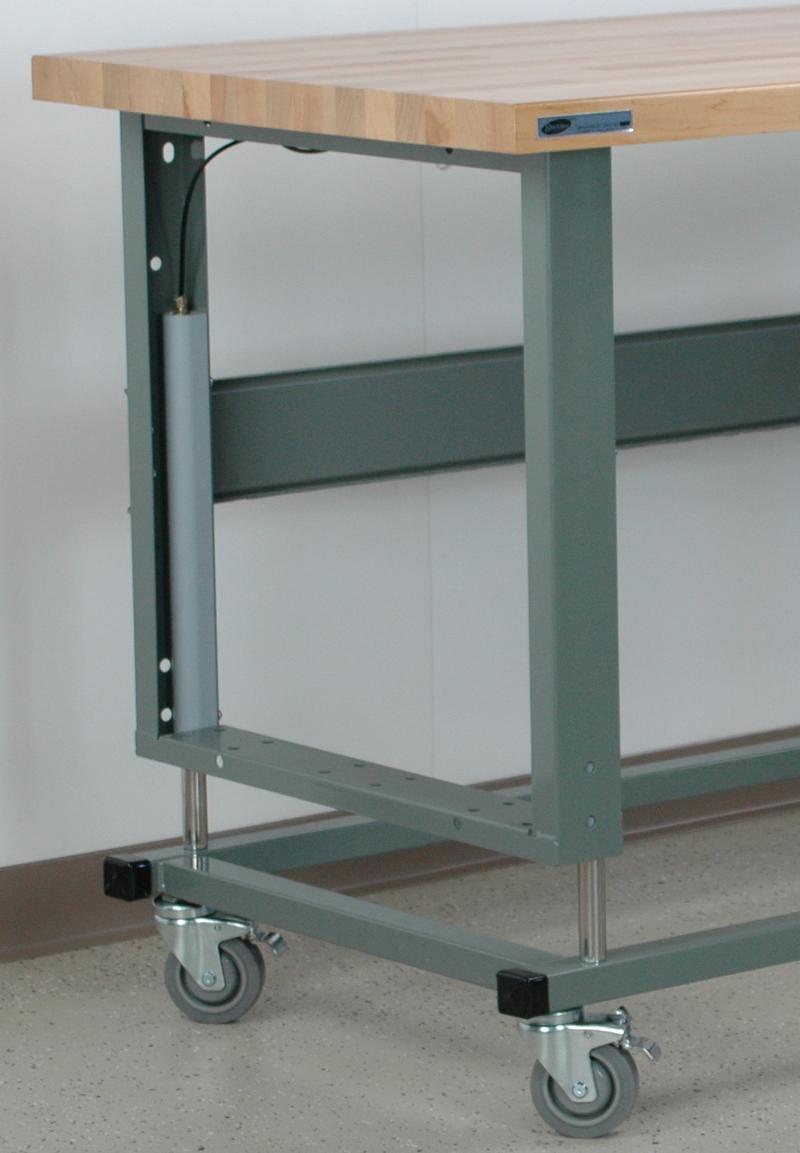

The 2500 Series mobile height adjustable work table takes height adjustability to a new level, with the addition of a hydraulic lift mechanism that offers 12 inches of stroke and is available with electronic and manual hand crank operation.  The "H-Frame" base makes this workbench a solid structural table which is necessary for any mobile application.

Hydraulic Lift Specifications:

  • Manufacturer:  Bucher Hydraulics, Heavy Duty Dyna-Lift
  • Actuation:  Electric Motor driven hydraulic pistons
  • Stroke:  12 inches
  • Lift Capacity:  1,500 pounds
  • Thermally protected electric pump motor
  • Volts:  115
  • Amp:  1.8
  • Hz:  60
  • PID:  1090
  • Insulation class:  B
  • Duty:  1 on 5 off min
